Máy chủ HPE ProLiant DL80 Generation9 (Gen9)
Part Number : 778640-B21, 778641-B21, 778686-B21, 778685-B21, 787217-B21
Bảo hành : 36 tháng
Made In : Singapore / China
Giá Bán : Từ 29 Triệu - Liên hệ với chúng tôi để có giá tốt nhất với cấu hình bạn đang cần mua
Máy chủ HPE / HP ProLiant DL80 Gen9 được thiết kế và tối ưu cho phân khúc thị trường các nhà cung cấp dịch vụ Online như Hosting, Gaming, Cho thuê server, ảo hóa, và các Doanh nghiệp vừa và nhỏ.
Thiết kế vật lý của máy chủ HPE ProLiant DL80 Generation9 (Gen9)

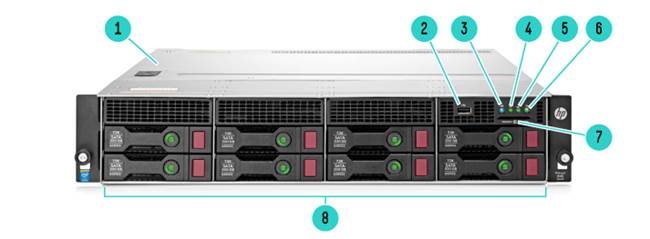

Mặt trước của máy chủ HPE ProLiant DL80 Generation9 (Gen9)
1. Access Panel (Top Cover)
2. USB 2.0 connector
3. UID button/LED
4. Health LED
5. NIC status LED
6. Power On/Standby button and system power LED
7.Serial label pull tab
8. 8-bay LFF drive cage ba0079

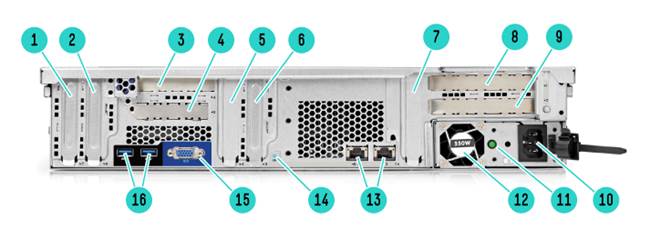

Mặt sau của máy chủ HPE ProLiant DL80 Generation9 (Gen9)
1. Slot 7 PCIe3 x16 low-profile, standup
2. Slot 6 PCIe3 x8 low-profile, standup
3. Slot 4 PCIe3 x8 low-profile, riser (optional)
4. Slot 5 PCIe3 x8 FlexibleLOM riser (optional)
5. Slot 4 PCIe3 x16 low-profile, standup
6. Slot 3 PCIe3 x8 low-profile, standup
7. Slot 1 PCIe3 x16 low-profile, standup
8. Slot 1 PCIe3 x16 full-height, full-length GPU riser (optional) or Slot 1 PCIe3 x8 (8, 4, 1) full-height, half-length riser (optional)
9. Slot 2 PCIe3 x8 full-height half-length riser (optional)
10. Power supply power connection
11. Power supply status LED
12. Non-hot-plug power supply
13. Embedded 2x1GbE network adapter
14. UID LED
15. Video connector
16. USB 3.0 connectors

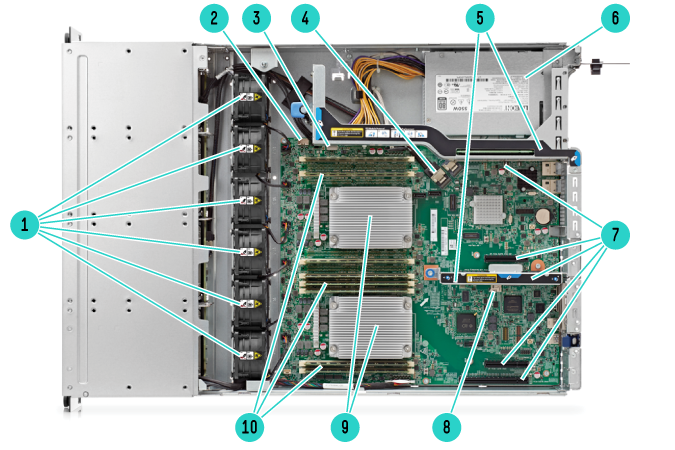

Thiết kế bên trong của máy chủ HPE ProLiant DL80 Generation9 (Gen9)
1. Fans shown with 6 Hot-swap fans
2.HPE Smart Storage Battery connector (optional)
3. Internal USB 3.0 connector
4. Embedded HPE Smart Array B140i Controller
5. PCIe riser kits
6. (Under) Non-Hot Plug HPE Power supply
7. PCIe 3.0 slots
8. MicroSD card slot
9. 2 Processors, heatsink showing, with HPE Smart Socket Guide
10. HPE DDR4 SmartMemory DIMM slots. Shown fully populated in 8 slots (4 per processor)
Máy chủ HPE DL80 Gen9 Với thiết kế Rackmount 2U, cho khả năng mở rông tối đa 2 CPU E5-2600 v3 Series, với 8 khe cắm RAM DDR4 (4 Khe cắm / CPU), cho phép chúng ta có thể mở rộng lên đến 256GB RAM. Máy chủ HPE ProLiant DL80 Generation9 cho phép mở rộng tối đa 12 ổ cứng hoăc ổ SSD 3.5" (LFF) với hai loại công nghệ SAS và SATA, DL80 Gen9 cũng hỗ trợ dòng ổ cứng cao cấp 12G SAS cho tốt độ truy xuất ổ cứng tốt nhất. Card RAID HPE Dynamic Smart Array B140i và HPE H240 FIO Smart Host Bus Adapter cho phép chúng ta có thể cấu hình RAID 0, 1, 10, 5. Với 09 khe cắm PCI mở rộng, máy chủ HPE ProLiant DL80 Generation9 (Gen9) cho phép chúng ta cắm thêm rất nhiều các card mở rổng như: card mạng 1G, 10G, các HBA, Card đồ họa, card tăng tốc, thêm bộ nhớ đệm ...
Ghi chú: Máy chủ DL80 HPE ProLiant DL80 Generation9 chỉ hổ trợ duy nhất loại ổ cứng, ổ SSD 3.5" (LFF)
Các loại RAM được sử dụng cho máy chủ HP / HPE ProLiant DL80 Generation9
Registered DIMMs (RDIMMs) for E5-2600v3 Series
726717-B21 HP 4GB (1x4GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit
726718-B21 HP 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit
759934-B21 HP 8GB (1x8GB) Dual Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit
726719-B21 HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit
728629-B21 HP 32GB (1x32GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit
Load Reduced DIMMs (LRDIMMs) for E5-2600v3 Series
726720-B21 HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit
726722-B21 HP 32GB (1x32GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit
HPE Standard Memory
803026-B21 HP 4GB (1x4GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Registered Standard Memory Kit
803028-B21 HP 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Standard Memory Kit
Các loại Ổ Cứng được sử dụng cho máy chủ HP / HPE HPE ProLiant DL80 Generation9
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
765424-B21 HP 600GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive
737394-B21 HP 450GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive
737261-B21 HP 300GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
761477-B21 HP 6TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
765259-B21 HP 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive
793671-B21 HP 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive
695510-B21 HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
765257-B21 HP 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive
793669-B21 HP 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive
652766-B21 HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
652757-B21 HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
652753-B21 HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
12G SAS Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives
762270-B21 HP 800GB 12G SAS Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive
762272-B21 HP 1.6TB 12G SAS Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive
12G SAS Hot Plug SmartDrive LFF (3.5-inch) Midline 512e Helium Drives
793703-B21 HP 8TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive
793699-B21 HP 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
753874-B21 HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
765255-B21 HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive
793667-B21 HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive
693687-B21 HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
765253-B21 HP 4TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive
793665-B21 HP 4TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drives
628061-B21 HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
658079-B21 HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
657750-B21 HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
658071-B21 HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
801888-B21 HP 4TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Standard 1yr Warranty Hard Drive
628065-B21 HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive
801886-B21 HP 3TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Standard 1yr Warranty Hard Drive
659339-B21 HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive
801884-B21 HP 2TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Standard 1yr Warranty Hard Drive
659337-B21 HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive
801882-B21 HP 1TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Standard 1yr Warranty Hard Drive
659341-B21 HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive
6G SATA Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives
691860-B21 HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
691856-B21 HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
691854-B21 HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
691852-B21 HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
804642-B21 HP 200GB 6G SATA Write Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
804668-B21 HP 400GB 6G SATA Write Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
804674-B21 HP 800GB 6G SATA Write Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
804680-B21 HP 1.2TB 6G SATA Write Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
6G SATA Hot Plug LFF Value Endurance (3.5-inch) Converter Enterprise Value M1 Solid State Drives
764945-B21 HP 800GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty M1 Solid State Drive
764943-B21 HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty M1 Solid State Drive
764941-B21 HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty M1 Solid State Drive
764939-B21 HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty M1 Solid State Drive
804616-B21 HP 200GB 6G SATA Mixed Use-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
804628-B21 HP 800GB 6G SATA Mixed Use-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
804634-B21 HP 1.6TB 6G SATA Mixed Use-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
832417-B21 HP 480GB 6G SATA Mixed Use-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
6G SATA Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives
757342-B21 HP 1.6TB 6G SATA Value Endurance LFF 3.5-in SC Converter Enterprise Value 3yr Wty Solid State Drive
718189-B21 HP 800GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive
739900-B21 HP 600GB 6G SATA Value Endurance LFF 3.5-in SC Conveter Enterprise Value 3yr Wty Solid State Drive
718183-B21 HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive
739890-B21 HP 300GB 6G SATA Value Endurance LFF 3.5-in SC Converter Enterprise Value 3yr Wty Solid State Drive
718177-B21 HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive
756624-B21 HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty G1 Solid State Drive
756639-B21 HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty G1 Solid State Drive
756660-B21 HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Converter ENT Value 3yr Wty G1 Solid State Drive
789137-B21 HP 240GB 6G SATA Read Intensive LFF 3.5-in SC Converter 3yr Wty Solid State Drive
789147-B21 HP 480GB 6G SATA Read Intensive LFF 3.5-in SC Converter 3yr Wty Solid State Drive
804578-B21 HP 80GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
804584-B21 HP 120GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
804590-B21 HP 240GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
804596-B21 HP 480GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
804602-B21 HP 800GB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
804608-B21 HP 1.6TB 6G SATA Read Intensive-2 LFF 3.5-in SCC 3yr Wty Solid State Drive
6G SATA Hot Plug LFF (3.5-inch) RI-3 SCC SSD
816933-B21 HP 3.84TB 6G SATA Read Intensive-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive
816923-B21 HP 1.92TB 6G SATA Read Intensive-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive
816913-B21 HP 960GB 6G SATA Read Intensive-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive
816903-B21 HP 480GB 6G SATA Read Intensive-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive
816893-B21 HP 240GB 6G SATA Read Intensive-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive
816883-B21 HP 120GB 6G SATA Read Intensive-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive
6G SATA Hot Plug LFF (3.5-inch) MU-3 SCC SSD
817015-B21 HP 1.92TB 6G SATA Mixed Use-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive
816999-B21 HP 960GB 6G SATA Mixed Use-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive
816989-B21 HP 480GB 6G SATA Mixed Use-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive
816979-B21 HP 240GB 6G SATA Mixed Use-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive
816969-B21 HP 120GB 6G SATA Mixed Use-3 LFF 3.5-in SC Converter 3yr Wty Solid State Drive
6G SATA Hot Plug LFF (3.5-inch) Enterprise Boot Solid State Drives
718171-B21 HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive
734362-B21 HP 80GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive
M.2 SSD
777894-B21 HP Dual 120GB Value Endurance Solid State M.2 Enablement Kit for ProLiant ML/DL Servers
788028-B21 HP 120GB Value Endurance Solid State M.2 Enablement Kit for ProLiant ML/DL Servers
6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline 512e Helium Drives
793695-B21 HP 8TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive
793683-B21 HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive
Hard Drive Blank Kits
666986-B21 HP Large Form Factor Hard Drive Blank Kit
Hard Drive Kits
788355-B21 HP DL80 Gen9 8LFF Non-hot Plug Enablement Kit
